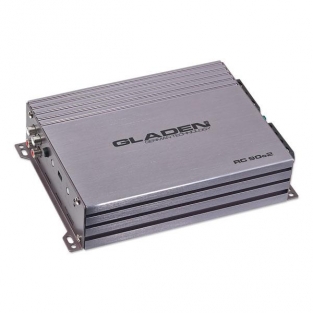

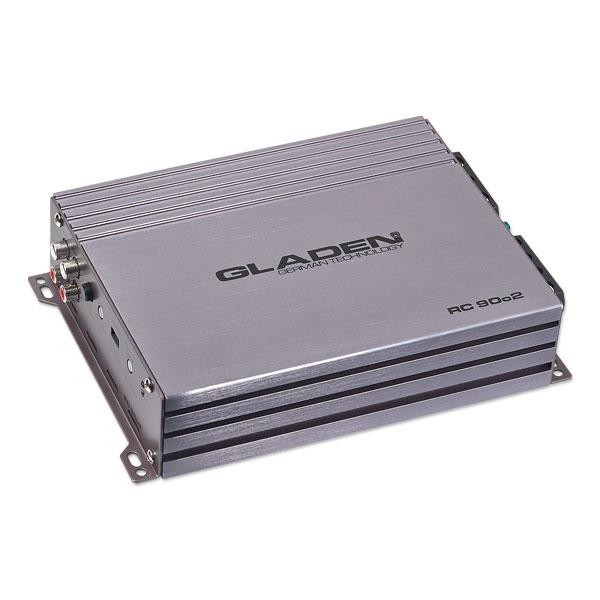

Gladen RC 90c2
2-kanaals versterker
Class Type AB
Power @14,4V /1.0% THD @ 4 ohm stereo: Wrms 2X 85 @ 2 ohm stereo: Wrms 2X 130 @ 4 ohm mono: Wrms 1X 260
Operation supply V 10-16
Thermal protection °C 80 THD @ 4 Ω / 50% Pmax % 0.5
Signal/noise dB 100
Band width +- 1 dB Hz 20-20000
Input sensitivity Vrms 0.2-10
Low input impedance Ω 17k
High input impedance Ω 50( with RC-HLT)Damping @ 80 Hz 50
Power consumption, idle A 0.5
Power cons. 4 Ω stereo A 18
Power cons. 4 Ω bridged A 32
Power cons. 2 Ω stereo A 32
Weight kg 1.67
Dimensions l/w/h 215/150/50mm
• Input with low- or high-level signal
• Stable at 2ohm stereo per channel and 4 ohm bridge mode
• High-level with autosense function (no remote signal required)
• Variable switchable Low Pass Filter from 45 to 225 Hz
• Variable switchable High Pass Filter from 45 to 225 Hz
• Protection for overheating, overloading, short circuitry and speaker DC protection
• Massive heavy aluminum-heat sink
